On-Line CCS-300
The CCS-3000 mineral and chemical analyzer is renowned for its rugged design and ability to withstand the toughest manufacturing environments in the industry. Insensitive to material variations such as particle size, material height and color, the CCS-3000 analyzer provides continuous, reliable readings. It requires only a one-time calibration, is maintenance free and the drift free optical design allows operating personnel to confidently make immediate process adjustments based on real-time measurements.
The CCS-3000 uses state-of-the-art components allowing installation in the most extreme locations. Additionally, with MoistTech’s product loss software capability where small gaps, inert material, foreign objects, belt or screw conveyors are removed from the measurement calculation this providing the most accurate true moisture reading.

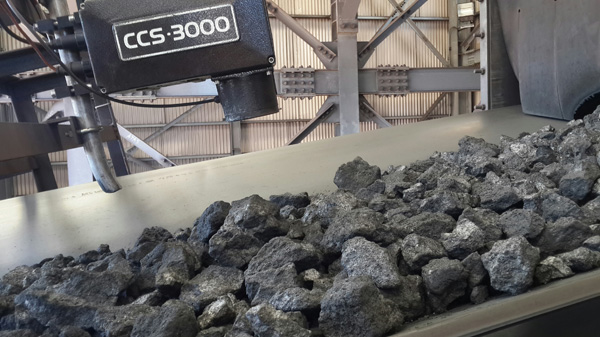

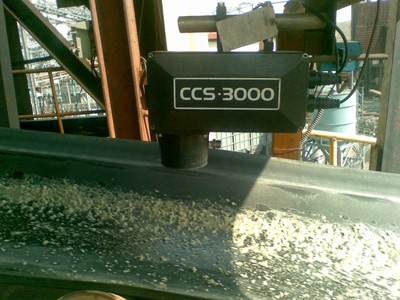

CCS-3000 Moisture Sensor Installation Locations
- belt conveyor
- screw and drag conveyors
- down chutes and storage bins.
At-line: The addition of the base and stand option provides instant off-line or at-line measurement under on-line operating conditions.
Specifications
-
Power: AC 110-220V
-
Moisture Range 0-95%
-
Accuracy +/- 0.1% to 0.01%
-
Repeatability +/- 0.1% of measured value
-
Dimensions 31cm x 18cm x16cm
-
Weight 7 Kilograms (15.5 lbs.)
-
Output (3) x 4-20mA
CCS-3000 Moisture Sensor Applications
MoistTech has the worldwide reputation for its exceptionally accurate NIR (near infrared) sensors and software for moisture testing, measurement and control, the newly developed CCS-3000 moisture sensors and software can be configured and calibrated for numerous components in virtually any application.
You can find more information about MoistTech’s moisture sensor applications and what products are ideally suited for accurate and precise moisture testing, measurement and control. In addition, thousands of moisture analyzers are installed on MoistTech applications, not only for the measurement of moisture, but also for other applications, such as measuring and controlling: coating thickness, resin content, oil, protein, fat, nicotine, sugar, seasonings, plastic film thickness and many other constituents.
